Asphaltic Plug Joint – Accommodate up to 40 mm movement

Asphaltic plug joint (also referred to as TST bridge joint) for movements up to 40 mm is a simple bridge expansion joint filled with asphalt. TST (crushed stone) elastic material is a special type of elastic-plastic material with high viscosity. Being heated sufficiently to melt, it can be poured into gravel and will be shaped into asphalt concrete form after molding to bear vehicle load.

Asphaltic plug joint can simultaneously give attention to some opposing performance requirements. For example, it can perform well in both high and low temperature (-25°C – 60°C), both permeability and viscosity. As a result, asphaltic plug joint can be used for wide temperature region to prevent vehicle-jumping at bridgehead. And bridge can be opened to traffic after two hours of construction.

Specification

Table 1: Specification of TST Bridge Joints
Stretching (mm)	Slot Width (mm)	Slot Depth (mm)	Beam end clearance (mm)
10	80–100	≥ 20	15
20	160–200	≥ 50	20
30	240–300	≥ 75	25
40	320–400	≥ 100	30
50	400-500	≥ 120	35

Package

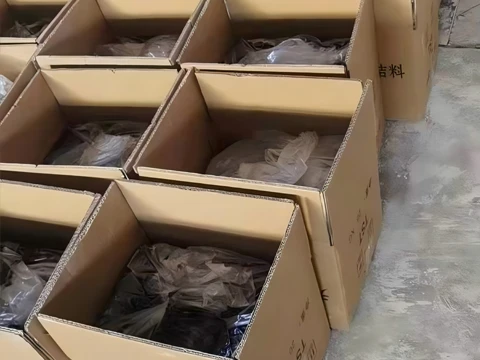

Asphaltic plug joint is packed in the carton. And each carton is 25 kg.

There are many cartons of asphaltic plug joint.

TEJ-1: Asphaltic plug joint are packed in carton

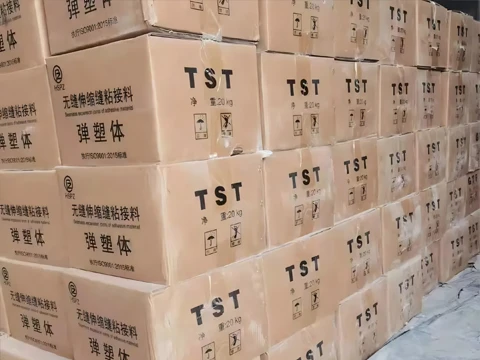

There are many cartons of asphaltic plug joint in the warehouse.

TEJ-2: Many carons of asphaltic plug joint

Features

High elasticity: TST bridge joints can adapt the load deformation and vehicle load well.
Good performance: TST bridge joints have good low-temperature flexibility and high-temperature stability.
Easy to construct: TST bridge joints can be installed easily and conveniently without blocking traffic.
Open to traffic quickly: Bridge can be opened to traffic in two hours after TST bridge joints are installed. If cooling is accelerated, the bridge can be open to traffic in an hour.
Shock-absorbing: TST bridge joints can absorb vibration of vehicle impact and make cars go smoothly.
Long service life: Being strict accordance with the requirements of the production and installation of expansion joints, TST bridge joints generally have a longer service life.
Low cost & high cost-effective.

Application

TST bridge joints are for movements up to 40 mm are suitable for small and medium-span bridges. Because of good performance under both high and low temperature, TST bridge joints can be used in different zones to ensure traffic safety.
TST bridge joints also can be used in the road and expressway.

Many workers are building the expressway with asphaltic plug joint expressway.

TEJ-3: Asphaltic plug joint is used in the connection expressways

The road has been built with asphaltic plug joint.

TEJ-4: Asphaltic plug joint used in end of road

The connection of bridges has been built with asphaltic plug joint

TEJ-5: Asphaltic plug joint used in connection of bridges

The ground of bridge is being built with asphaltic plug joint.

TEJ-6: Asphaltic plug joint is used in end of bridge

Installation

Asphaltic plug joint can be installed with adhesive in the connection of bridges easily. And it can condense quickly and will not affect the normal traffic.

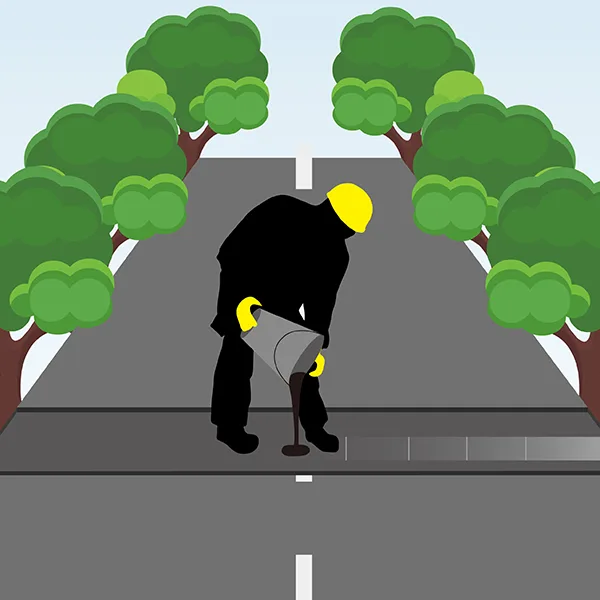

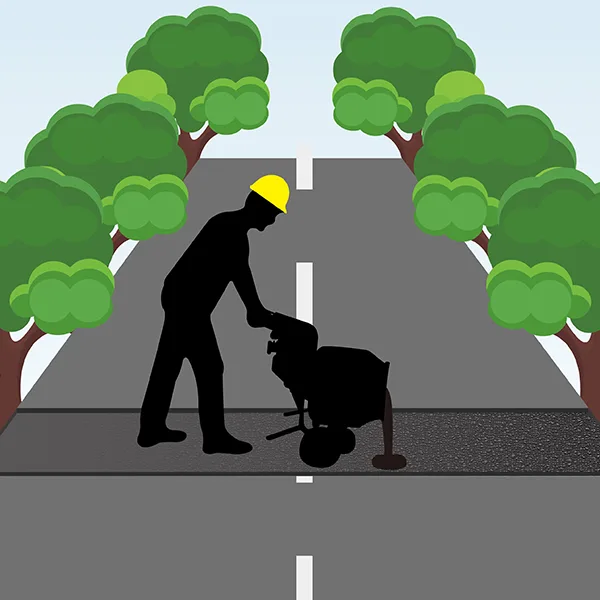

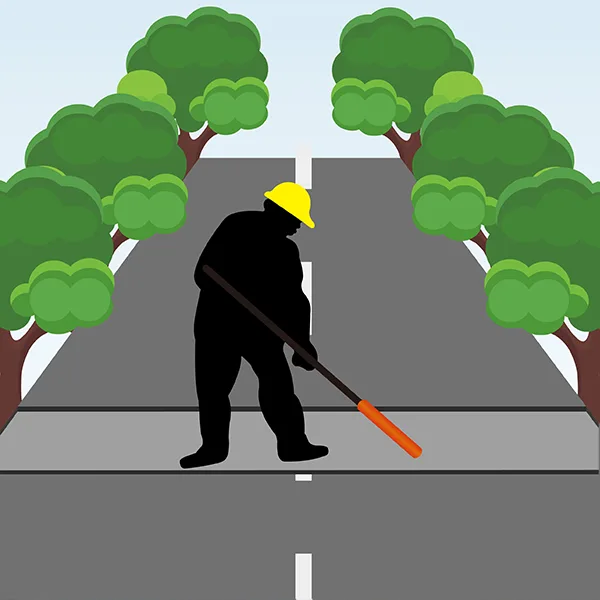

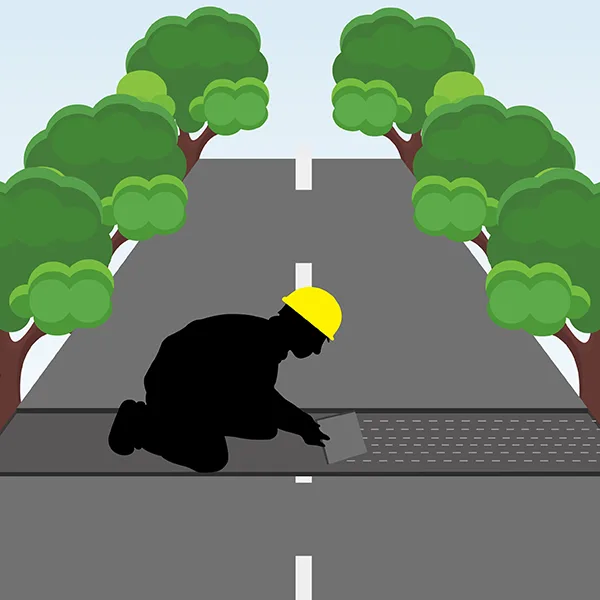

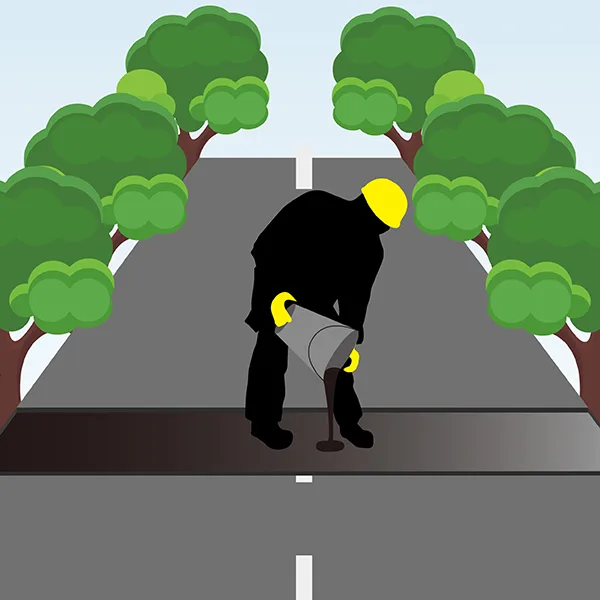

This is the schematic diagram of TST bridge joint.

TEJ-7: The diagram will show you the installation of TST bridge joint.
